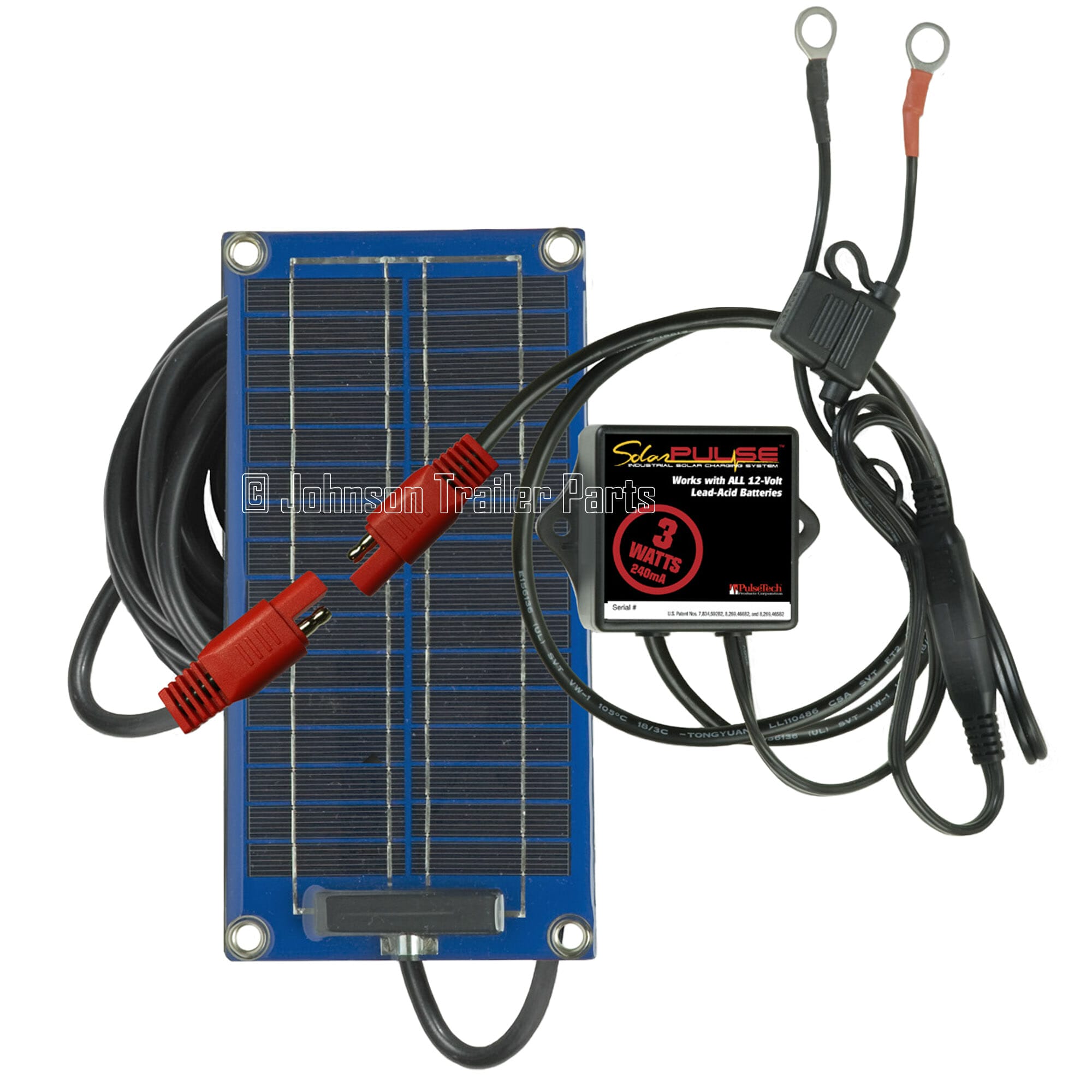

3 Watt Solar Battery Charger Maintainer – 12V | SP-3 SolarPulse


$104.95

3 Watt Solar Battery Charger Maintainer – 12V | SP-3 SolarPulse

Works with all 12-Volt lead-acid batteries including VRLA, AGM, gel and flooded cell.

  • The PulseTech® SP-3 SolarPulse® 3-Watt Solar Charger restores and maintains the normal loss of 12V lead-acid battery power on seldom used outdoor vehicles and equipment.
  • SolarPulse’s higher efficiency, higher quality crystalline silicon cells pack more power per square inch and have longer life than standard amorphous “thin film” solar cells for a sturdier smaller sized solar panel. Plastic coated panels are virtually indestructible and impervious to weather and age.
  • The 3 Watt Solar Battery Charger provides a full 3-Watts of power in a small durable size (4.7”L x 9.45”W x 0.25”H).
  • For ultimate performance, it should be used on a single 12V lead-acid battery to replace the power loss from electrical accessories that occurs even when the ignition is switched off and to reverse naturally occurring sulfation buildup on the battery plates.

IMPROVE BATTERY PERFORMANCE AND EXTEND BATTERY LIFE

The 3 Watt Solar Battery Charger model utilizes our unrivaled solar charging system combined with our patented high frequency Pulse Technology pulsing circuit to ensure your battery will start when you need it. This patented Pulse Technology reverses the naturally occurring process of battery sulfation – the main cause of battery failure – and allows batteries to accept, store and release maximum power all the time extending battery life up to three times.

SolarPulse’s solar panels are protected with a clear polyurethane plastic coating that makes them virtually indestructible and impervious to weather aging and damage from bumps and knocks. An LED light indicates charge so you know when it’s working. The LED shines brightly when the solar panel is in full sunlight and working at optimum level, dims when the panel is exposed to partial sunlight and goes out at night.

  • Works with all 12-Volt lead-acid batteries including VRLA, AGM, gel and flooded cell.
  • Commercial-grade crystalline cells are 30% smaller per watt than and twice as efficient as typical panels.
  • Maintains the normal loss of battery power on seldom-used vehicles and equipment.
  • Patented Pulse Technology circuit continuously desulfates the battery.
  • Virtually indestructible commercial design.
  • Dramatically reduces jump starts.
  • Maintains the battery indefinitely without the danger of overcharging or overheating.
  • Reverse polarity protected.
  • LED indicates unit is working.
  • Ten-Year Limited Warranty.
  • Datasheet
  • Installation Manual

Check out these Industry-Trusted Battery Optimizer Kits.


Please contact us if you have any questions we can assist you with.

(602) 292-9690(602) 292-9690

Email: sales@johnsontrailerparts.com

Check out our Documents page for more information.

Model Name: SolarPulse 12V Solar Charger Maintainer, 3-Watt
Model Number: SP-3
Part Number: 735X453

Input Electrical
Solar Powered

Output Electrical
Output Current: 240 mA
Output Voltage, Bulk Charge: 16.5 V dc

Mechanical/Physical Characteristics
Circuit Box Dimensions: 3.4″ L x 2.25″ W x 1.5″ H
Solar Panel Dimensions: 4.7″ L x 9.45″ W x 0.25″ H
Weight: 1.65lbs

Shipping Weight: 2.2lbs

Box to Lug Wire Length: 3′
Box to Panel Wire Length: 17′
Quick Disconnect Between Solar Panel & Circuit Box

Environmental
Operating Temperature: 0°F to 130°F
Storage Temperature: 0°F to 150°F

Indicator
LED shines brightly when the solar panel is in full sunlight and fades during partial sunlight

Warranty
10-Year Limited Warranty
