14K-D Dump Trailer Parts Kit – PH520 Hoist


*Free Shipping to a Commercial/ Business Address or Freight Terminal Near You in the Lower 48 States. Residential and Lift gate Deliveries Will Require an Additional Fee. We will find the Freight Terminal for you. Contact us for more information, Thank you.

$3,793.00

Clear

14K-D Dump Trailer Parts Kit – PH520 Hoist. Rockwell American Trailer Axles come with a 2 yr Manufacturers Warranty and a Superior Powder Coated Finish and Patented “Posi-Lube” system that Provide Continuous Bearing Protection.

Premium Supply is a Industry Leader for Dump Trailer Scissor Hoists. Backed with a 36 month Standard Warranty

Included Components in the 14K-D Dump Trailer Parts Kit – PH520 Hoist:

    • (2) 7,000 lb Rockwell American Trailer Axles with Electric Brakes, Bearings, Lugs & Nuts. (Cambered)
      • 865 Bolt Pattern
      • Bottom Mount Springs
    • (4) Double Eye Springs – 25.25″ Eye to Eye, 1.75″ Wide – 3.5k Capacity Ea , 6 Leaf, 3.″ Arch, .5625″ Eye.
    • (2) U-Bolt Kit, Round 3″ x 7″ x .5625″-18 with U-Bolts, Plates, Washers & Nuts.
    • (1) Tandem Hanger Kit for Double Eye Springs.
    • (2) Tandem Fenders 10″ x 72″
    • (2) Tandem Fender Backs – Pre-cut
    • (1) A-frame Coupler for 2 5/16″ Ball – 14k Capacity
    • (1) Drop Leg Jack, Topwind, Heavy Duty 7k Lift, 8k Support, Blk Powder Coat – Weld-on
    • (2) Safety Chains – .375″  x 35″,  with Clevis Slip Latch Hook – 16.2k
    • (2) Weld-on Safety Chain Anchors – 1/2″
    • (1) TecNiq LED Light Kit Includes: (All Lights are Tecniq LED Lights)
      • (1) Pair of 4″ Box Tail Lights Left and Right Side (Submersible)
      • (2) Amber PC/P2 Rated Marker Lights with Chrome base and Gasket – Self Grounding
      • (2) Red PC/P2 Rated Marker Lights with Chrome base and Gasket – Self Grounding
      • (3) Red 3/4″ PC Rated Sidemarkers (for over 80″ trailers)
    • (1) Wiring Kit Includes:
      • (1) 4-Way Wire Harness – 25 ft
      • (1) 15′ Jacketed Brake wire (14g-2, black and white)
      • (1) Breakway Kit
      • (1) 7 way Trailer Cord with Junction Box – 7 ft
    • (4) 16″ Trailer Wheels and Tires – Mounted
      • ST235/80R16
      • 10 Ply Radials
      • 865 Bolt Pattern
      • 3.52k Capacity Each

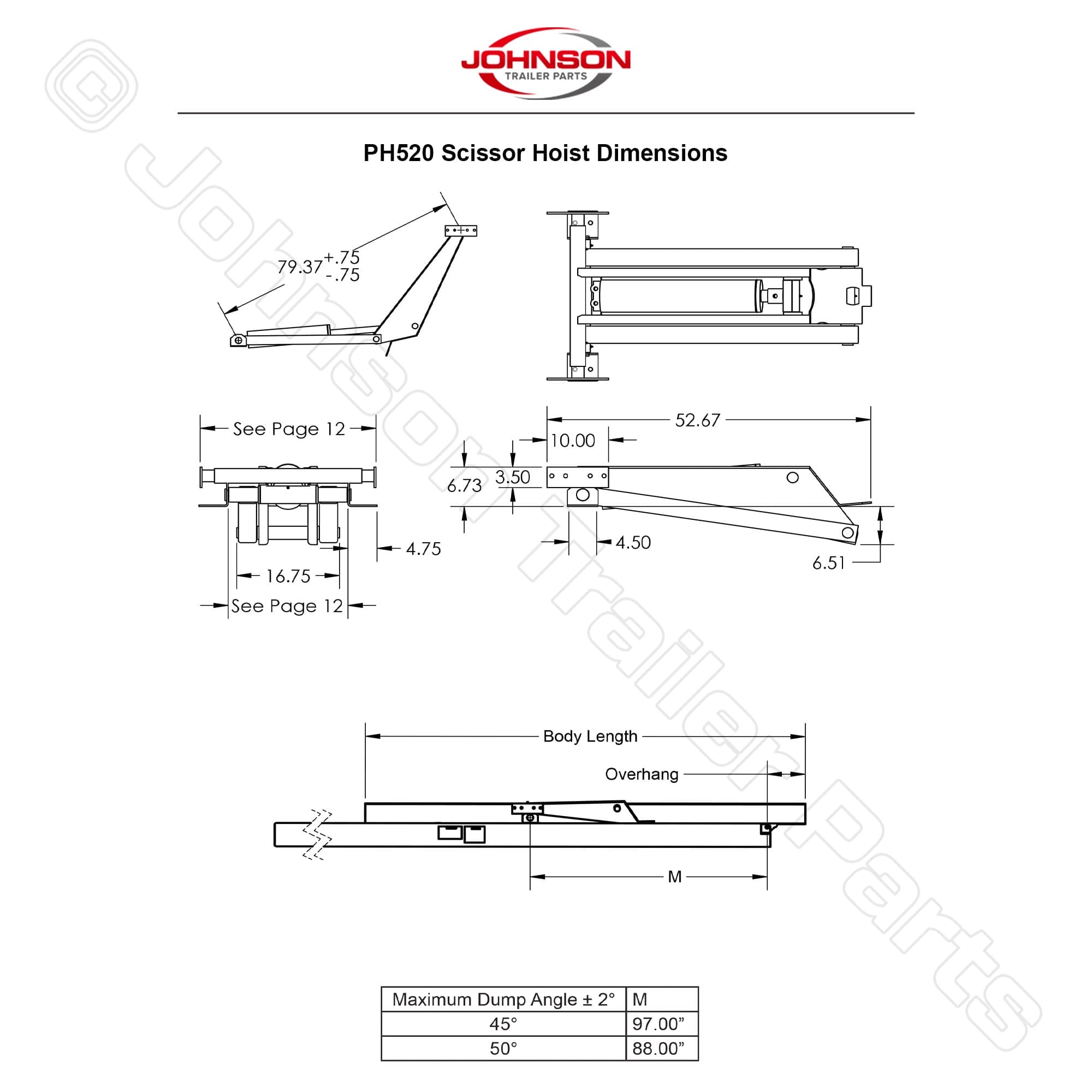

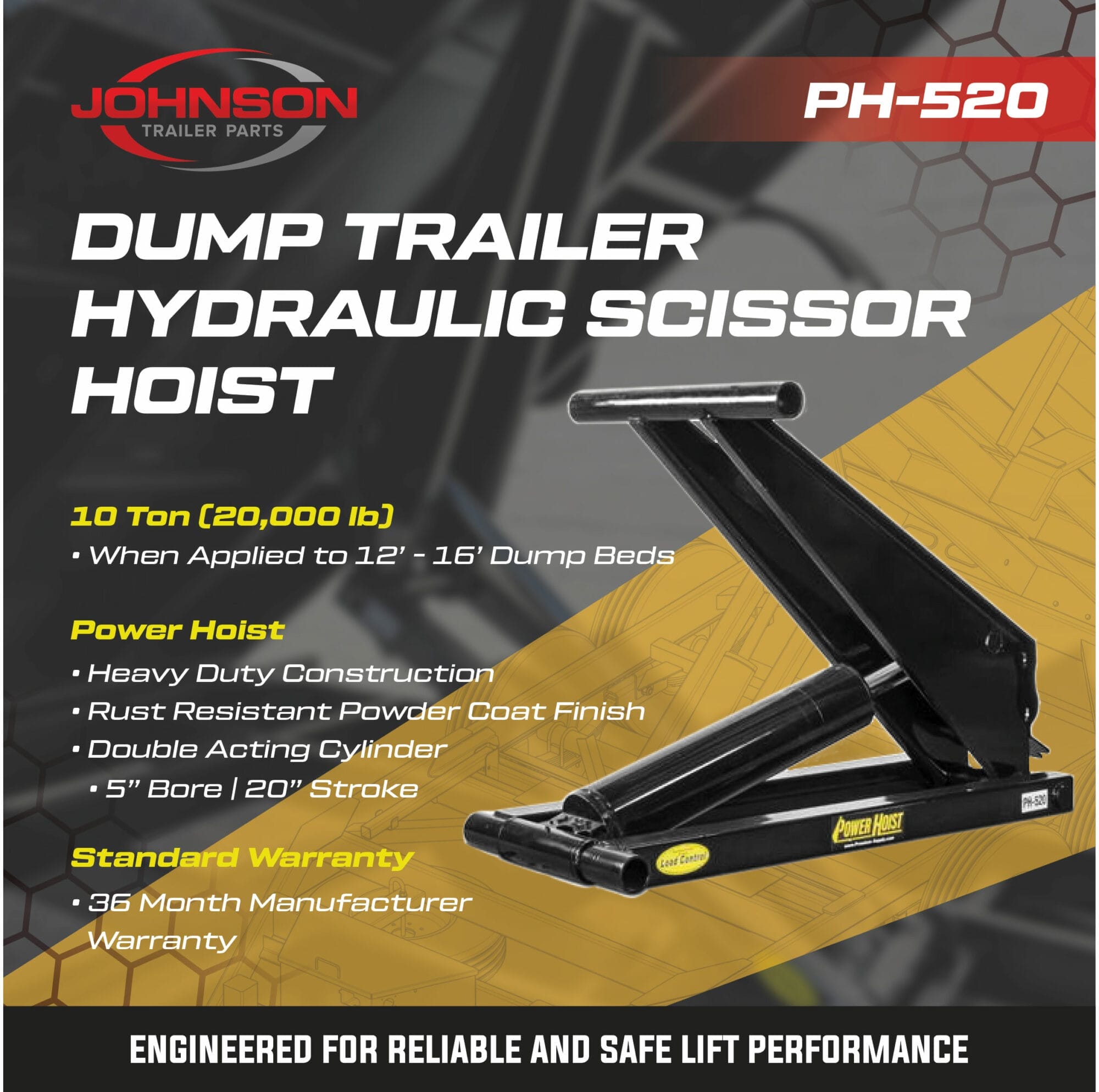

    • (1) PH520 Hydraulic Scissor Hoist Kit Includes:
      • KTI Hydraulic Power Unit (HPU) Double Acting
      • 15’ Control with Power Up / Power Down
      • Hoist Assembly (including steel frame and 5″ hydraulic cylinder)
      • Hydraulic Hose Assembly
      • Hydraulic Fittings
      • Bridon Load Control
      • Safety Arm and Safety Arm Cup
      • Safety Arm Storage Bracket
      • Hinges, Battery Cables, and Rubber Strap
      • Safety Labels
      • Manual

Our 14K-D Dump Trailer Parts Kit – PH520 Hoist can be Modified to Better Suit Your Needs. Please contact us if you have any questions we can assist you with. (602) 292-9690 (602) 292-9690

Most Common Axles Sizes for this kit: Other Sizes Available, Contact us.

  • 89″ Hubface – 74″ Spring Center – This fits a 76″ Frame Width (6 ft 4 in)
  • 95″ Hubface – 80″ Spring Center – This fits a 82″ Frame Width (6 ft 10 in)

Need help with wiring a trailer? Check out our Trailer Wiring Diagrams.




Important Information:

Free delivery to shipping terminal or commercial/ business location near you. Trailer Parts Kits will be delivered on a shipping pallet. Residential (UPS,FedEx, Lift Gate) deliveries Will Require an additional fee. Please contact us for more details.





This Kit can be Modified to Better Suit Your Needs. Please contact us if you have any questions we can assist you with. (602) 292-9690 (602) 292-9690
